NetworkedIO

 The Brains of t he system


The combination of software and hardware that's easy to set up, easy to use, and easy to integrate.
Software that plays well with others.

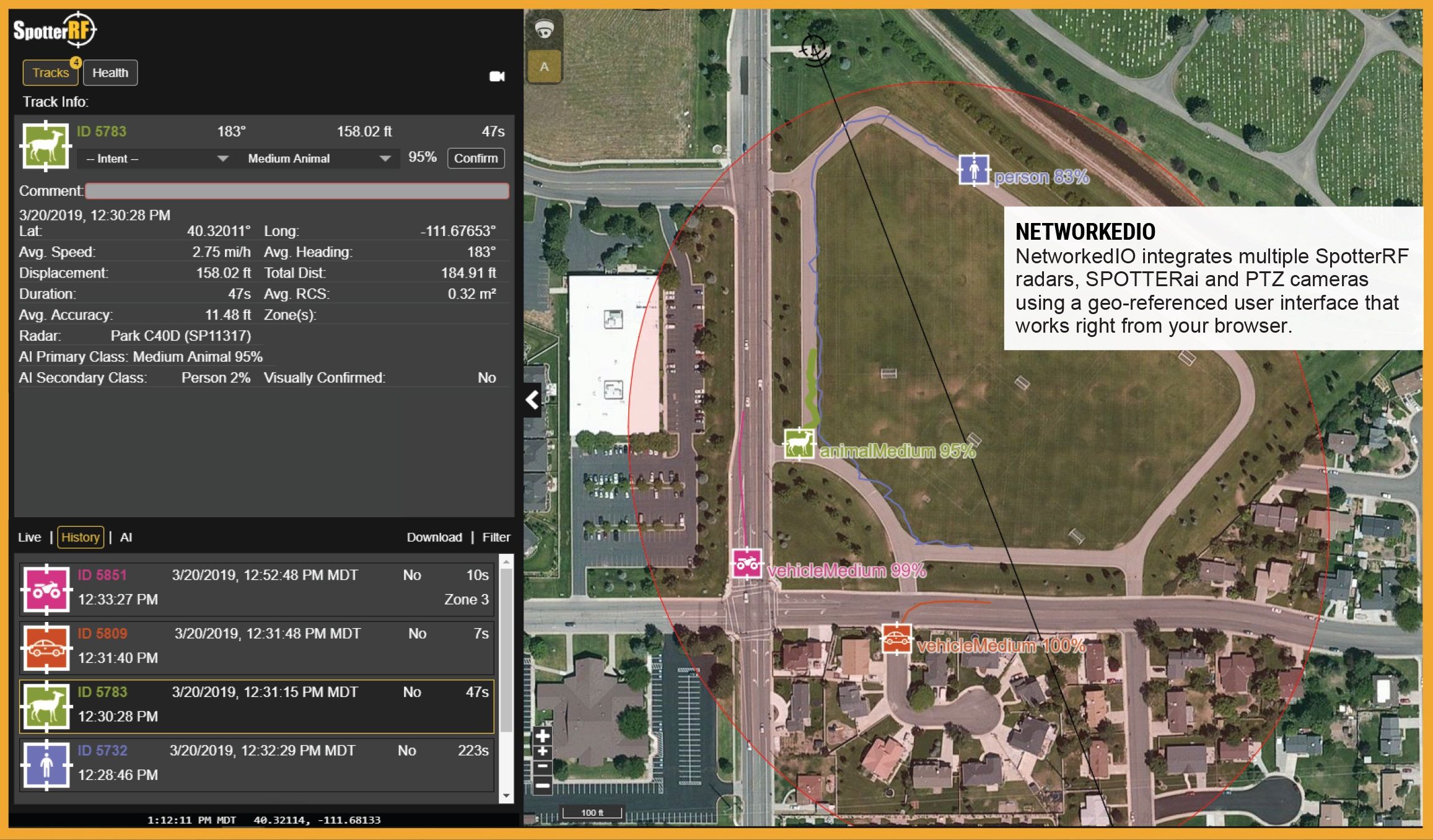

NetworkedIO servers integrate multiple SpotterRF radars and PTZ cameras using a geo-referenced user interface that works right from your browser.
NetworkedIO takes the information from the devices and are yours to manage, customize and create to your own tailor-made intrusion detection solution.



NetworkedIO with SPOTTERai Automatic Track Classification: Machine Learning and
Artificial Intelligence
(AI) for the automatic classification of targets

Odoo • Text and Image

Set Up and Get Started Quickly

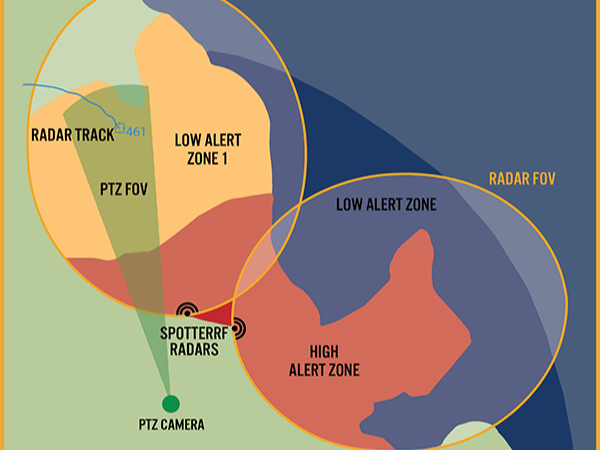

NetworkedIO hardware and software work in tandem to create seamless interaction with PTZ cameras and more. Simply install the hardware, open the NetworkedIO interface in your web browser, set alert zones and customize your events.


SPOTTERai is automatic track classification included as part of the NIO software that ensures a trainable neural network that, based on low-level radar data, automatically assigns a classification type and confidence level for each target. The use of AI and Machine Learning in the NIO assists in reducing false alerts and allows end-users to improve the performance of the system simply by manually selecting the type of targets being tracked and retraining the AI.

Odoo • Image and Text
Odoo • Text and Image

NetworkedIO Hardware

All of SpotterRF's NetworkedIO hardware devices run the same NetworkedIO software platform
but each has unique specific advantages to best fit your application.

Odoo - Sample 1 for three columns

NIO-VM

NIO-VM allows for NIO to be installed on any machine capable of running virtual machines and meets our minimum specifications. This allows for customers to decide how powerful they would like their server to be, as well as utilize existing servers on a site to host NIO. The NIO-VM has a small, medium, and large, which support 10, 25 and 50 devices.

Odoo - Sample 1 for three columns

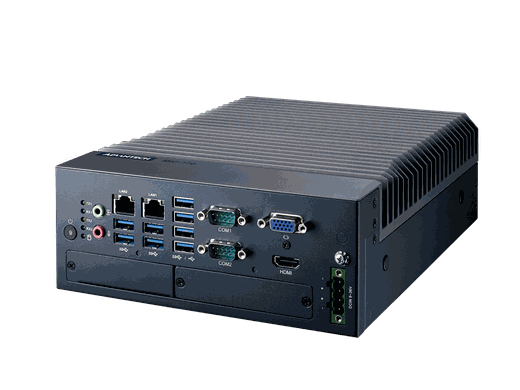

NIO-DIN

SpotterRF's newest addition, NIO-DIN is an entirely solid-state, IP65 rated NIO capable of supporting up to 75 devices. It is DIN-rail mounted and can support AI training and RTSP streaming. This portable NIO can be deployed in control boxes at any site and offers the power of a server while being deployed on the edge. This allows for flexible deployment and easy integration to any site, new or existing.

Odoo - Sample 1 for three columns

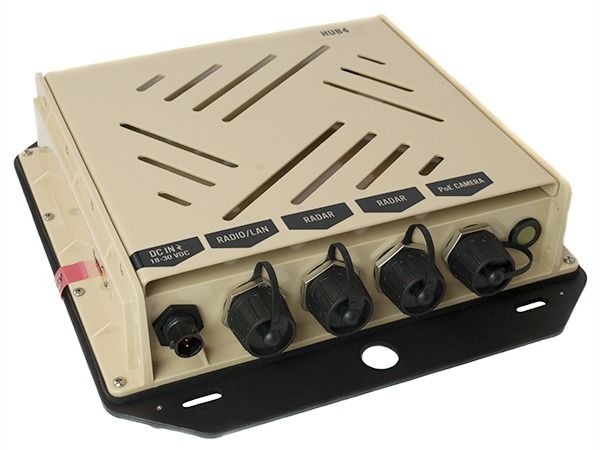

NIO-HUB4

In a MIL-SPEC ruggedized case, the HUB4 can be used in the roughest environments. The HUB4 delivers unmatched physical integration and flexibility. It has the capability to provide power for two SpotterRF radars, one PTZ camera, and a wireless radio. Paired with a compact battery, the HUB4 is perfect for mobile applications.

Odoo - Sample 1 for three columns

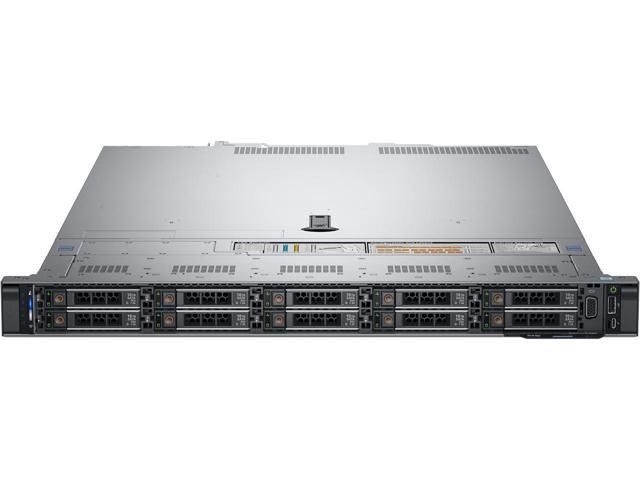

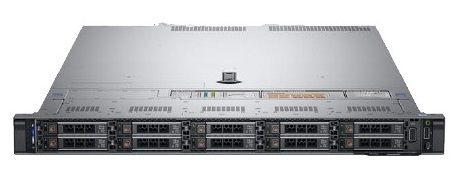

NIO-APL

Like other NetworkedIO appliances, SpotterRF’s NIO-APL offers a fully-integrated perimeter security solution.  Featuring power-redundancy, hardware RAID and powerful hardware, this rack mounted NIO is capable of supporting up to 75 radars or cameras. Its power allows for RTSP streaming and AI training which provides a more information-rich deployment.

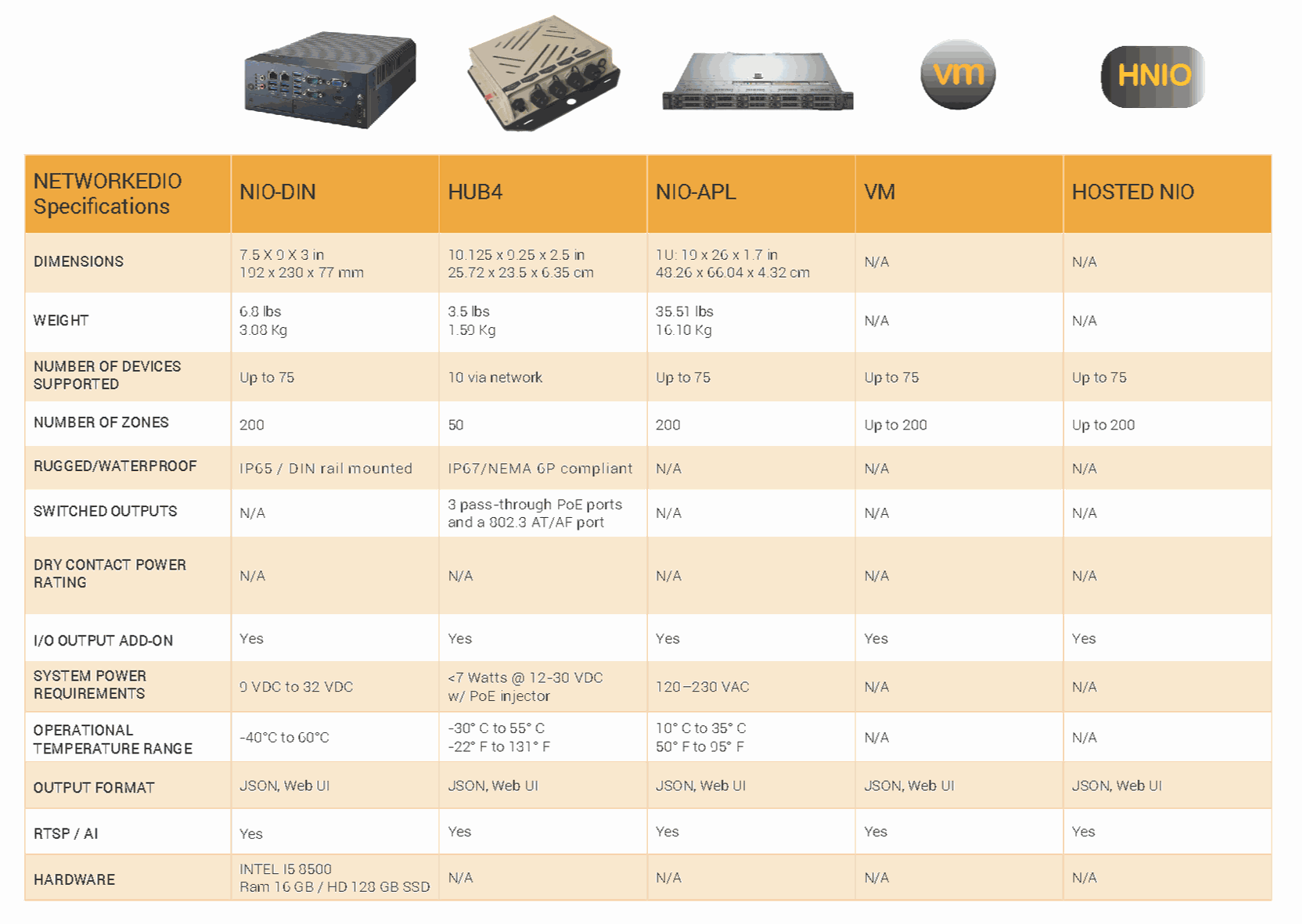

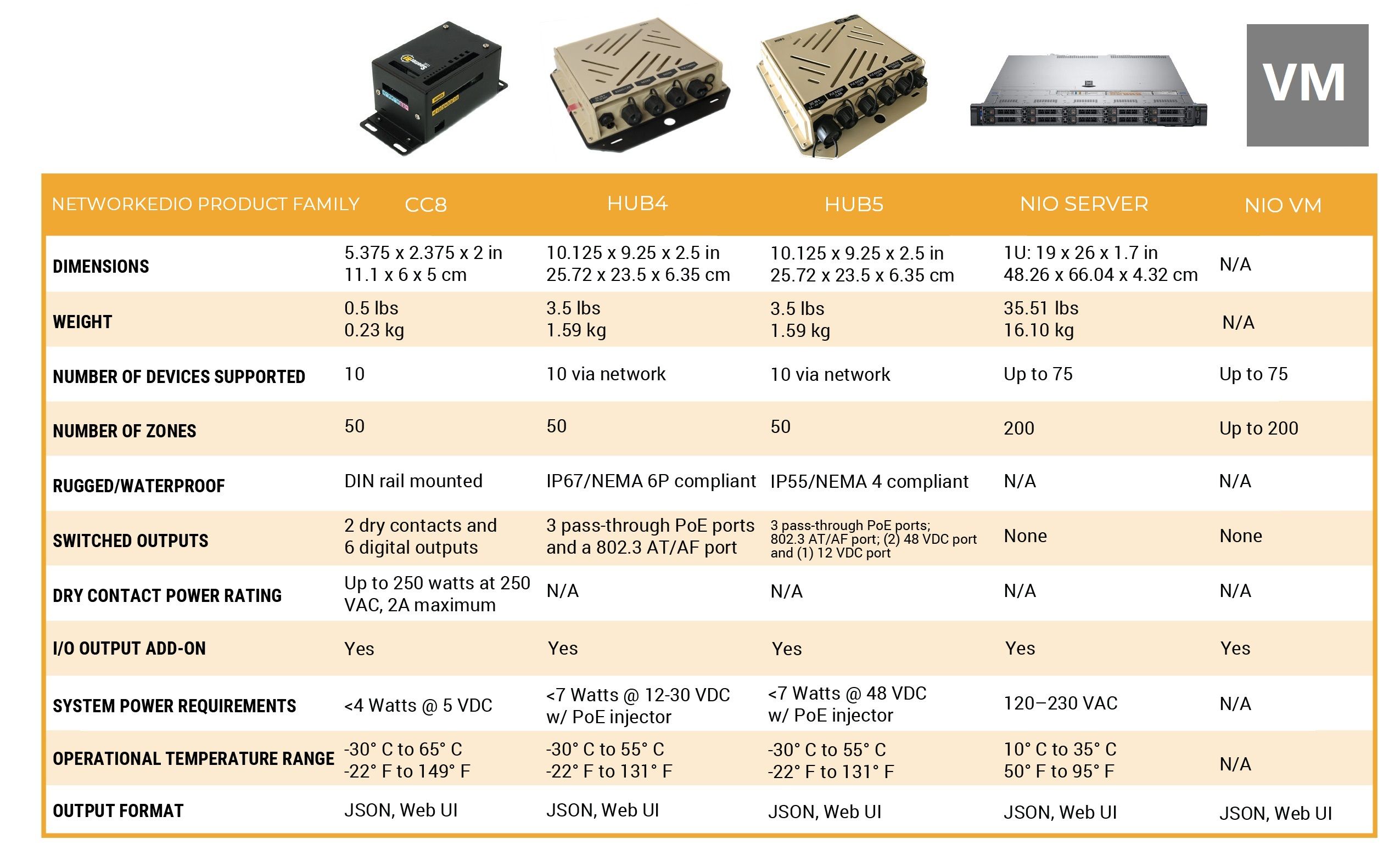

NetworkedIO Specifications
