Imaging Radar

4D imaging high resolution radar with unmatched performance

Paradigm-changing perception and full flexibility

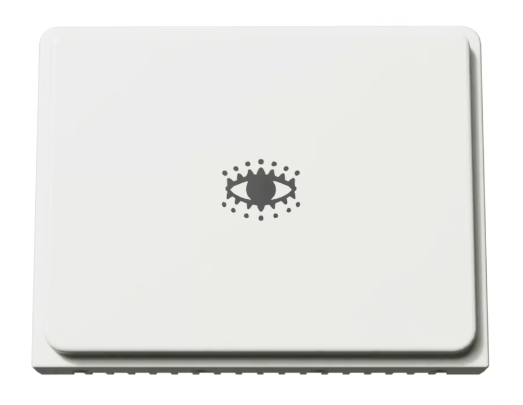

Munin

Static 4D Imaging Radar

The Munin 4D Imaging Radar is built on Arbe’s high resolution radar chipset and Gapwaves' antenna technology. This enables a market leading resolution, long range, wide field of view and precise real time object detection. With Sensrad's advanced perception algorithms it has an unmatched support for a variety of use cases within perimeter surveillance, smart city, and traffic management applications.

Consistent and reliable operation under inclement weather and dust
Elevates multi-object detection-tracking, counting, speed measurement and classification
Long lifetime and low maintenance, minimizing operational disruptions
Unparalleled resolution enables precise identification and classification of even the smallest objects

Product features

General specifications

Processor

Arbe Everest 1.3

RX IC

Arbe RXv3 (12 Ch)

TX IC

Arbe TXv4a (24 Ch)

Antenna

Multi-layer waveguide

Array

2X24 TX x 4x12 RX

Interface

Power over Ethernet

Frequency

76–81 GHz

Bandwidth

<2 GHz

Frame rate

<30 FPS

Dimensions

13 x 11.5 x 3.5 cm

Weight

0.6 kg (target)

Power

<20 W (target)

Resolution

Range

>17 cm

Azimuth (native)

1.25°

Azimuth (SR)

0.35°

Elevation (native)

1.5° (2.5° ULR)

Doppler

0.07 m/s

Detection area

Azimuth FoV (-10 dB)

+/- 50°

Elevation FoV (-10 dB)

+/- 15°

Detection range

0.2 -> +350 m (mode dependant)

Doppler

-43 m/s to +86 m/s

Datasheet
